Boremax Lease Package
Full lease of the BOREMAX Main Unit (SRD Direct Drive) and Dedicated Control Cabinet, no purchase required, just steady, dependable lift.
Why Lease Instead of Buy
No large upfront equipment cost: Replace CapEx with an all-inclusive lease model.
Full installation and training included: On-site setup, wellhead integration, and operator training covered under the agreement.
2-year warranty: Double the standard warranty coverage of conventional systems.
Ongoing support: Complete access to replacement parts, maintenance, and technical governance throughout the lease term.
Boremax Lease Package
Full lease of the BOREMAX Main Unit and Control Cabinet — no purchase required, just steady, dependable lift.
Why Lease Instead of Buy
No large upfront equipment cost
Full installation and training included in the lease
2-year warranty on the leased unit
Ongoing support for the life of the lease
The System

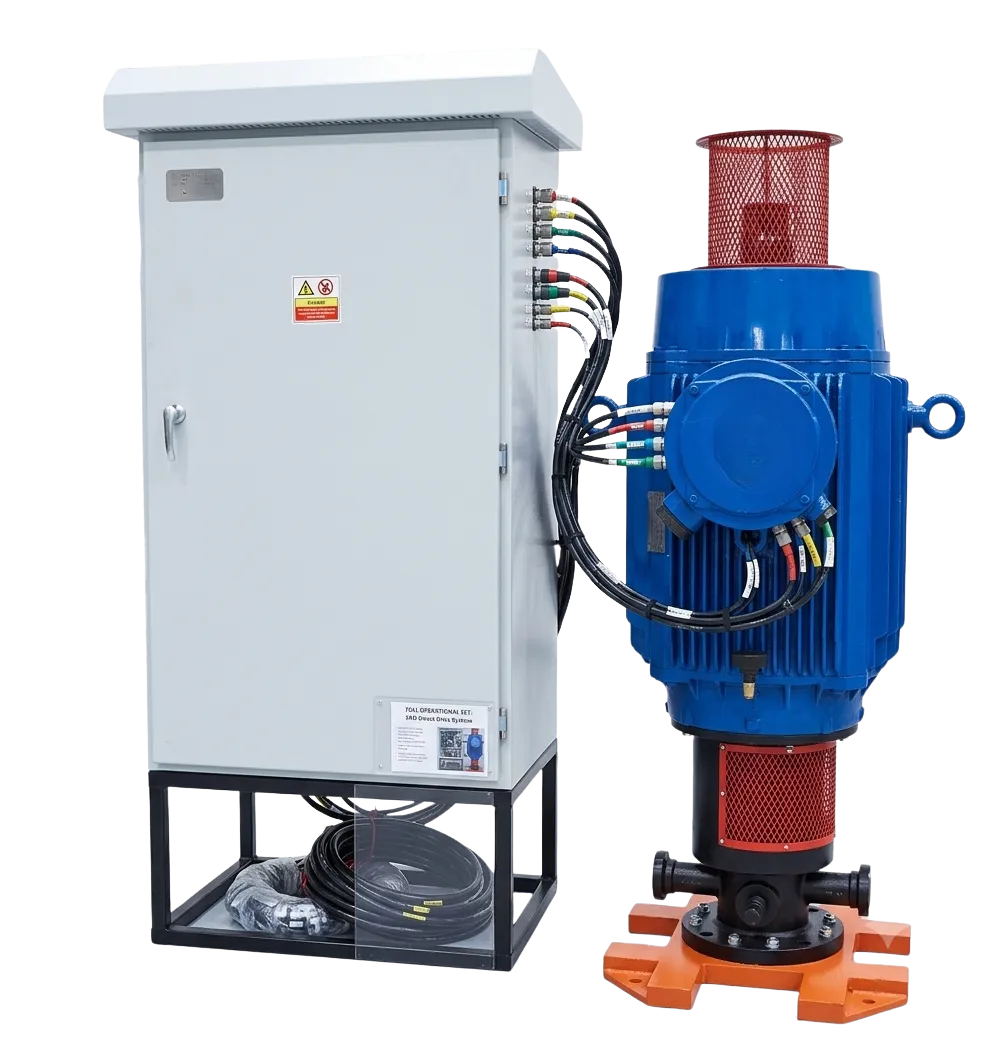

What's Included:
Boremax Main Unit
(SRD Drive)
Coaxial direct-drive motor — no belts, no gearboxes, and no mechanical speed reducers.
Dedicated Control Cabinet
Integrated system controller featuring an HMI display, soft start/stop capabilities, and remote speed/torque management.
Electrical Wiring & Hardware
Power cable and wiring hardware included in every lease package, ready for wellsite integration.
Installation &
Commissioning
On-site well evaluation, mechanical/electrical installation, commissioning, and technician training included.
Patented Braking & Safety System
Integrated magnetic-powder brake providing a 0.5-second anomaly response and PI-controlled backspin speed limiting (≤20 rpm).
Documentation & Support
Complete operating manuals, technical datasheets, and ongoing technical support for the life of the lease.
Technical Specifications
Model
BOREMAX SRD 22 kW Reference Unit
Motor output
22 kW (11 kW / 37 kW available by special requirement)
Drive type
Switched Reluctance Direct Drive (Coaxial)
Rated Voltage / Freq
380 / 420 / 440 / 460 / 480 V (50/60 Hz, ±15% range)
Rated torque
1,050 N·m (Start / Overload up to 200%)
Brake Response / Torque
0.5 seconds / 1,300 N·m combined braking capacity
Speed range
20–200 RPM (±1 RPM accuracy)
Operating temperature
Down to -40°C Extreme Cold Ready (Alberta Special
System Efficiency
95% System Peak
Main unit weight
21,557 kg (gross 1,637 kg)
Main Unit Dimensions
900 × 810 × 1,810 mm (35.5 × 31.9 × 71.3 in)
Control Cabinet Dimensions
960 × 800 × 1,980 mm (37.8 × 31.5 × 78.0 in)
Technical Specifications
Model
BOREMAX SRD 22 kW Reference Unit
Motor output
22 kW (11 kW / 37 kW available by special requirement)
Drive type
Switched Reluctance Direct Drive (Coaxial)
Rated Voltage / Freq
380 / 420 / 440 / 460 / 480 V (50/60 Hz, ±15% range)
Rated torque
1,050 N·m (Start / Overload up to 200%)
Brake Response / Torque
0.5 seconds / 1,300 N·m combined braking capacity
Speed range
20–200 RPM (±1 RPM accuracy)
Operating temperature
Down to -40°C Extreme Cold Ready (Alberta Special
System Efficiency
95% System Peak
Main unit weight
21,557 kg (gross 1,637 kg)
Main Unit Dimensions
900 × 810 × 1,810 mm (35.5 × 31.9 × 71.3 in)
Control Cabinet Dimensions
960 × 800 × 1,980 mm (37.8 × 31.5 × 78.0 in)
Model
BOREMAX SRD 22 kW Reference Unit
Motor output
22 kW (30 HP)
Drive type
Direct drive
Rated torque
1,050 Nm
Speed range
20-200 RPM
Operating temperature
-40°C to 60°C
Max installation depth
2,000 m
Main unit weight
21,557 kg (gross 1,637 kg)
Main unit protection
IP5
Control cabinet weight
233 kg (gross 303 kg)
Included wiring
215 m electrical cable
Get in touch
U.S.-Based Operations,
Field-Proven Design
Boremax leases and supports its direct-drive systems for operators across the United States. The underlying technology is backed by a manufacturing facility in Douliu and an extensive field history across demanding international basins—including high-sand, heavy oil, and high-viscosity applications.
14411 Catalina dr San Leandro CA 94576
Boremax provides direct-drive artificial lift systems engineered for reliable, efficient oil and gas production. Our lease-based solution helps operators reduce energy consumption, simplify field operations, and keep wells producing.
